Best quality Tube Mill Strip Welding Unit - ERW 50mm Tube Mill – TUBO Detail:

Production Description

ERW50 Tube mill/pipe mill/welded pipe production/Pipe making machine is used to Produce steel pipes of 16mm~50mm in OD and 0.7mm~3.0mm in wall thickness, as well as corresponding square and rerctangular pipe.
Application:GI,Construction,Automotive,General Mechanical tubing,Furniture, Agriculture,Chemistry,Oil,Gas, Conduit,Contructure.

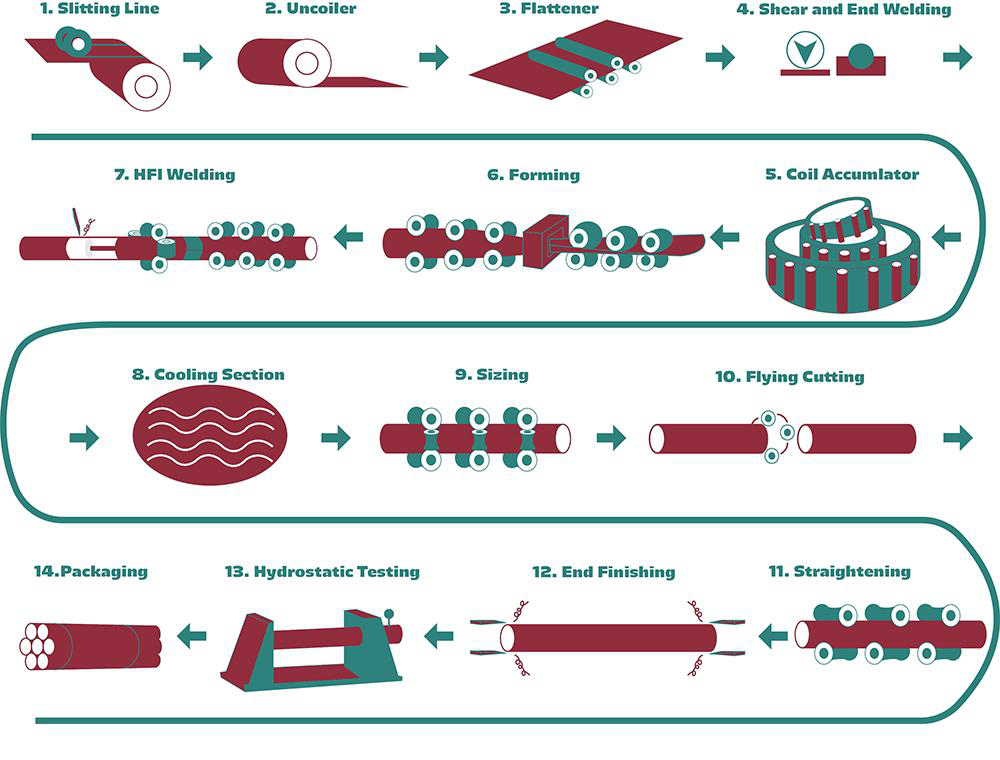

Process Flow

Steel Coil → Double-arm Uncoiler → Shear and End Cutting & Welding → Coil Accumulator → Forming (Flattening Unit + Main Driving Unit + Forming Unit + Guide Unit + High Frequency Induction Welding Unit + Squeeze Roller) → Deburring → Water Cooling → Sizing & Straightening → Flying Saw Cutting → Pipe Conveyor → Packaging → Warehouse Storage

P2

Advantages

1.High Precision
2.High Production efficiency,Line speed can be up to 120m/min
3.High Strength,The machine works stably at a high speed, which improves product quality.
4.High Good product rate, reach to 96.5%
5.Low wastage, Low unit wastage and low production cost.

Specification

Raw Material

Coil Material

Low Carbon Steel, Q235, Q195

Width

65mm-190mm

Thickness:

0.8mm-3mm

Coil ID

φ450-φ520mm

Coil OD

Max φ1500mm

Coil Weight

1.0-2.0Tons

Production Capacity

Round Pipe

20mm – 50mm

Square & Rectangular Pipe

15*15mm - 40*40mm

Wall Thickness

0.8 - 3.0mm (Round Pipe)
0.8 - 2.0mm(Square Pipe)

Speed

Max. 120m/min

Pipe Length

3m – 12m

Workshop Condition

Dynamic Power

380V, 3-phase,

50Hz (depends on local facilities)

Control Power

220V, single-phase, 50 Hz

Size of the whole line

50m X 4m （L*W）
Product detail pictures:

Best quality Tube Mill Strip Welding Unit - ERW 50mm Tube Mill – TUBO detail pictures

Best quality Tube Mill Strip Welding Unit - ERW 50mm Tube Mill – TUBO detail pictures

Best quality Tube Mill Strip Welding Unit - ERW 50mm Tube Mill – TUBO detail pictures

Best quality Tube Mill Strip Welding Unit - ERW 50mm Tube Mill – TUBO detail pictures

Related Product Guide:
All we do is often involved with our tenet " Purchaser to start with, Rely on initially, devoting over the food stuff packaging and environmental defense for Best quality Tube Mill Strip Welding Unit - ERW 50mm Tube Mill – TUBO , The product will supply to all over the world, such as: Belgium , Morocco , United Arab emirates , We have advanced production technology, and pursuit innovative in products. At the same time, the good service has enhanced the good reputation. We believe that as long as you understand our product, you must be willing to become partners with us. Looking forward to your inquiry.

1. Q : Are you manufacturer ?
A: Yes, We are manufacturer . More than 15 years R&D and Manufacturing Experience. We use more than 130 CNC machining equipments to guarantee our products perfect.

2. Q: What payment terms do you accept?
A: We are flexible on payment terms, please contact us for details.

3. Q:What information do you need to supply a quotation?
A:   1. Maximum Yield Strength of the material,
2.All pipe sizes needed (in mm),
3. Wall thickness (min-max)

4. Q: What is your advantages?
A:   1. Advanced mould share-use technology (FFX, Direct Forming Square). It saves a lot of invest amount.
2. Latest quick change technology to increase the output and reduce labor intensity.
3. More than 15 years R&D and Manufacturing Experience.
4. 130 CNC machining equipments to guarantee our products perfect.
5. Customized According to Customer Requirements.

5. Q: Do you have after sales support?
A: Yes,we have. We have a 10-person -professional and strong installation team.

6.Q: How about your service?
A:(1) One year’s warranty.
(2) Providing spare parts for life time at cost price.
(3) Providing Video technical support, Field installation, commissioning and training, online support, Engineers available to service machinery overseas.
(4) Provide technical service for facility reforming, refurbishment.
